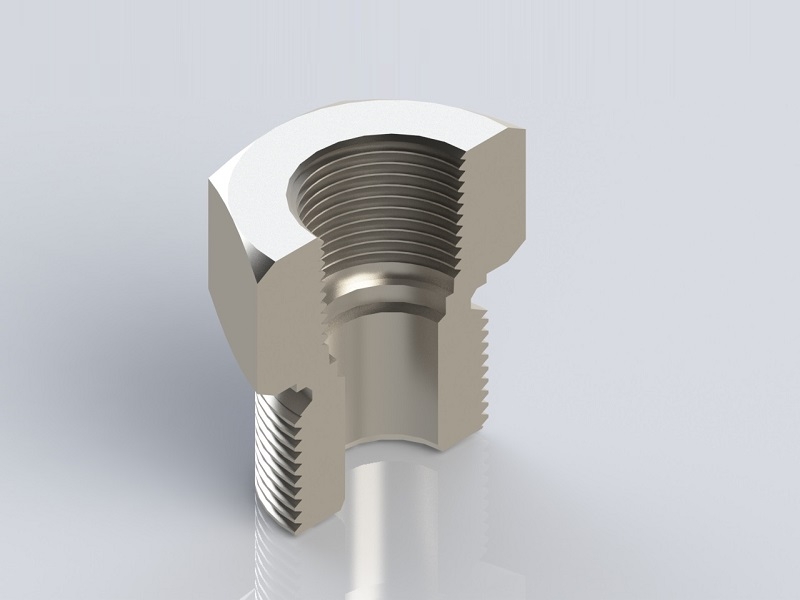

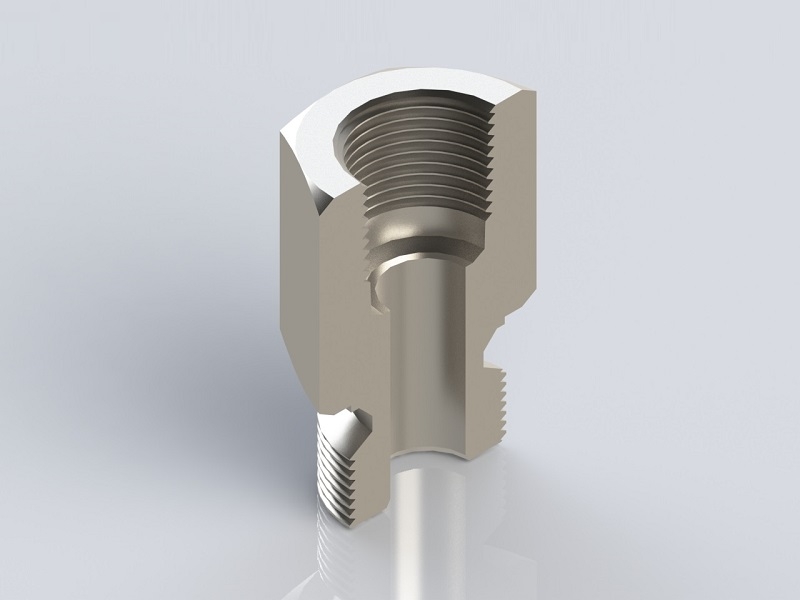

BSPP Male to BSPT Female
Introduction
Material
Stainless Steel / Brass / Carbon Steel / Titanium
Finish Treatment
Nickel Plated / Zinc Plated
Description
| BSPP Male to BSPT Female | ||||
|---|---|---|---|---|
| Part No. | T1 - BSPP Male | T2 - BSPT Female | L (Length) | HEX (Width) |
| GR04M02F | 1 / 4 – 19 | 1 / 8 – 28 | 28 | 19 |
| GR04M04F | 1 / 4 – 19 | 1 / 4 – 19 | 33.5 | 19 |
| GR04M06F | 1 / 4 – 19 | 3 / 8 – 19 | 34 | 22 |
| GR04M08F | 1 / 4 – 19 | 1 / 2 – 14 | 41 | 27 |
| GR06M04F | 3 / 8 – 19 | 1 / 4 – 19 | 35 | 22 |
| GR06M06F | 3 / 8 – 19 | 3 / 8 – 19 | 34 | 22 |
| GR08M06F | 1 / 2 – 14 | 3 / 8 – 19 | 39.5 | 27 |
| GR08M08F | 1 / 2 – 14 | 1 / 2 – 14 | 45 | 27 |
| GR10M08F | 5 / 8 – 14 | 1 / 2 – 14 | 43.5 | 30 |
| GR12M08F | 3 / 4 – 14 | 1 / 2 – 14 | 47.5 | 32 |
| GR12M12F | 3 / 4 – 14 | 3 / 4 – 14 | 49 | 36 |
| GR16M12F | 1 – 11 | 3 / 4 – 14 | 47.5 | 41 |
| GR16M16F | 1 – 11 | 1 – 11 | 57 | 41 |
| GR20M20F | 1-1/4 – 11 | 1-1/4 – 11 | 58.5 | 50 |
*Spec, Hex & Length are able to be customized.
*Short Bushing is able to be customized.
| Male to Female | ||||
|---|---|---|---|---|
| 1 - T1 | 2 - T2 | 3+4+M | 6+7+F | 9+10 |
| Male Thread | Female Thread | T1 Dash Size | T2 Dash Size | Material |
| G-BSPP | R-BSPT | 02 to 20 | 02 to 20 | SS-Stainless Steel |
| BR-Brass | ||||
| BN-Brass (Nickel Plated) | ||||
| ST-Carbon Steel | ||||
| SZ-Carbon Steel (Zinc Plated) | ||||
| SN-Carbon Steel (Nickel Plated) | ||||
| TI-Titanium | ||||
Example
BSPP Male to Female Extented Stainless - GG04M04FSS
JIC Male to NPT Female Carbon Steel - JN02M04FST
| BSPP | ||||
|---|---|---|---|---|
| Dash Size | Inch Size | Nominal Thread Size | Male Thread O.D. | Female Thread I.D. |
| -2 | 1/8" | 1 ⁄ 8 – 28 | 3/8 (0.38") | 11/32 (0.35") |
| -4 | 1/4" | 1 ⁄ 4 – 19 | 33/64 (0.52") | 15/32 (0.47") |
| -6 | 3/8" | 3 ⁄ 8 – 19 | 21/32 (0.65") | 19/32 (0.60") |
| -8 | 1/2" | 1 ⁄ 2 – 14 | 13/16 (0.82") | 3/4 (0.75") |
| -10 | 5/8" | 5 ⁄ 8 – 14 | 7/8 (0.88") | 13/16 (0.80") |
| -12 | 3/4" | 3 ⁄ 4 – 14 | 1-1/32 (1.04") | 31/32 (0.97") |
| -16 | 1" | 1 – 11 | 1-5/16 (1.30") | 1-7/32 (1.22") |
| -20 | 1-1/4" | 1-1/4 – 11 | 1-21/32 (1.65") | 1-9/16 (1.56") |
| BSPT | ||||
|---|---|---|---|---|
| Dash Size | Inch Size | Nominal Thread Size | Male Thread O.D. | Female Thread I.D. |
| -2 | 1/8" | 1 ⁄ 8 – 28 | 3/8 (0.38") | 11/32 (0.35") |
| -4 | 1/4" | 1 ⁄ 4 – 19 | 33/64 (0.52") | 15/32 (0.47") |
| -6 | 3/8" | 3 ⁄ 8 – 19 | 21/32 (0.65") | 19/32 (0.60") |
| -8 | 1/2" | 1 ⁄ 2 – 14 | 13/16 (0.82") | 3/4 (0.75") |
| -10 | 5/8" | 5 ⁄ 8 – 14 | 7/8 (0.88") | 13/16 (0.80") |
| -12 | 3/4" | 3 ⁄ 4 – 14 | 1-1/32 (1.04") | 31/32 (0.97") |
| -16 | 1" | 1 – 11 | 1-5/16 (1.30") | 1-7/32 (1.22") |
| -20 | 1-1/4" | 1-1/4 – 11 | 1-21/32 (1.65") | 1-9/16 (1.56") |
