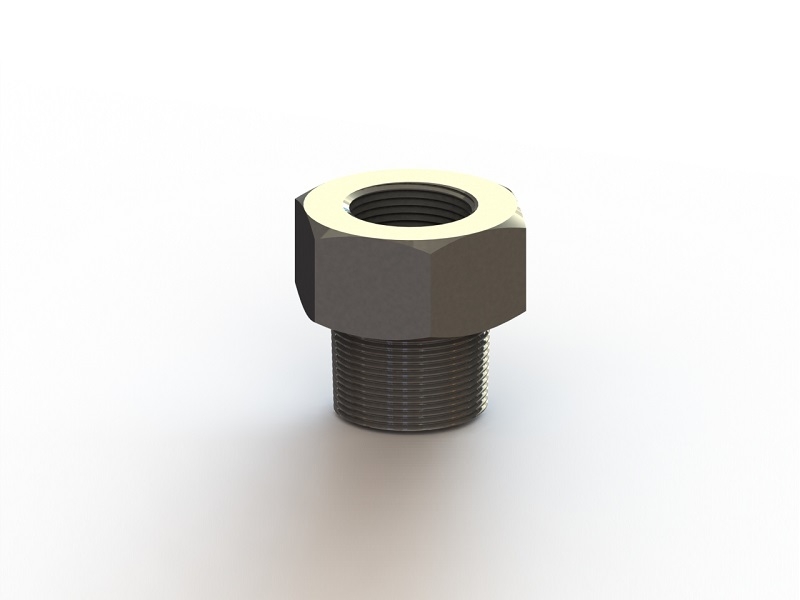

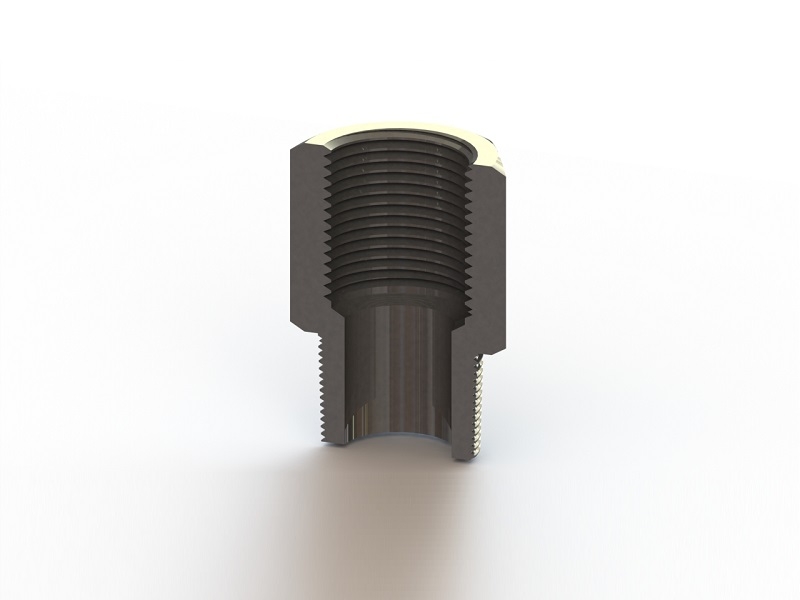

BSPT Male to BSPP Female
Introduction
Material
Stainless Steel / Brass / Carbon Steel / Titanium
Finish Treatment
Nickel Plated / Zinc Plated
Description

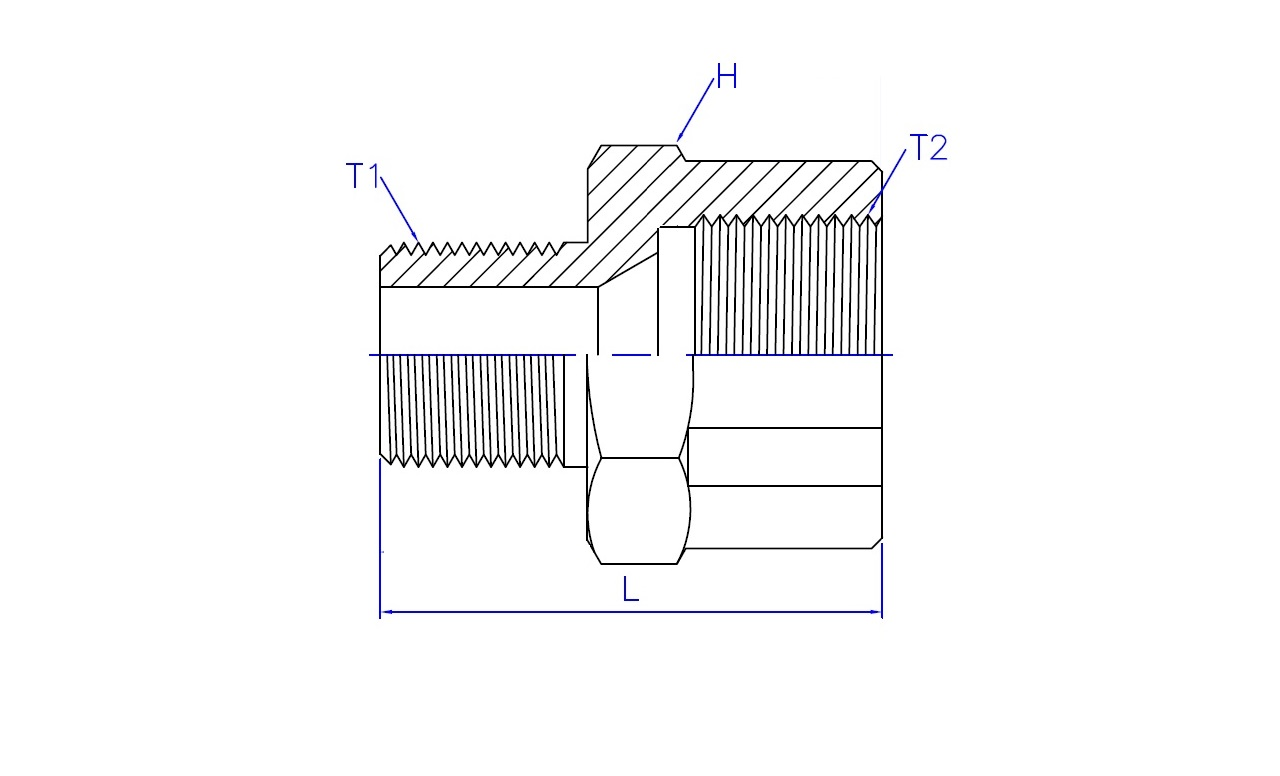

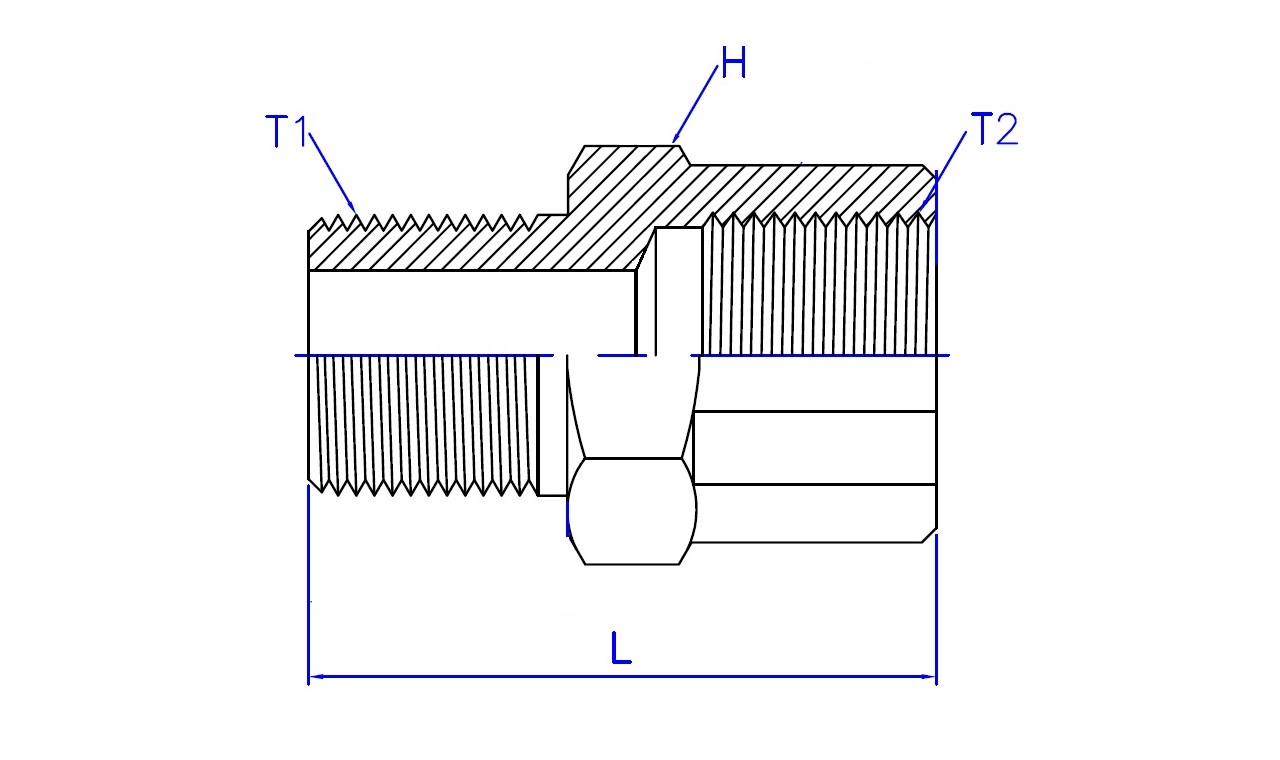

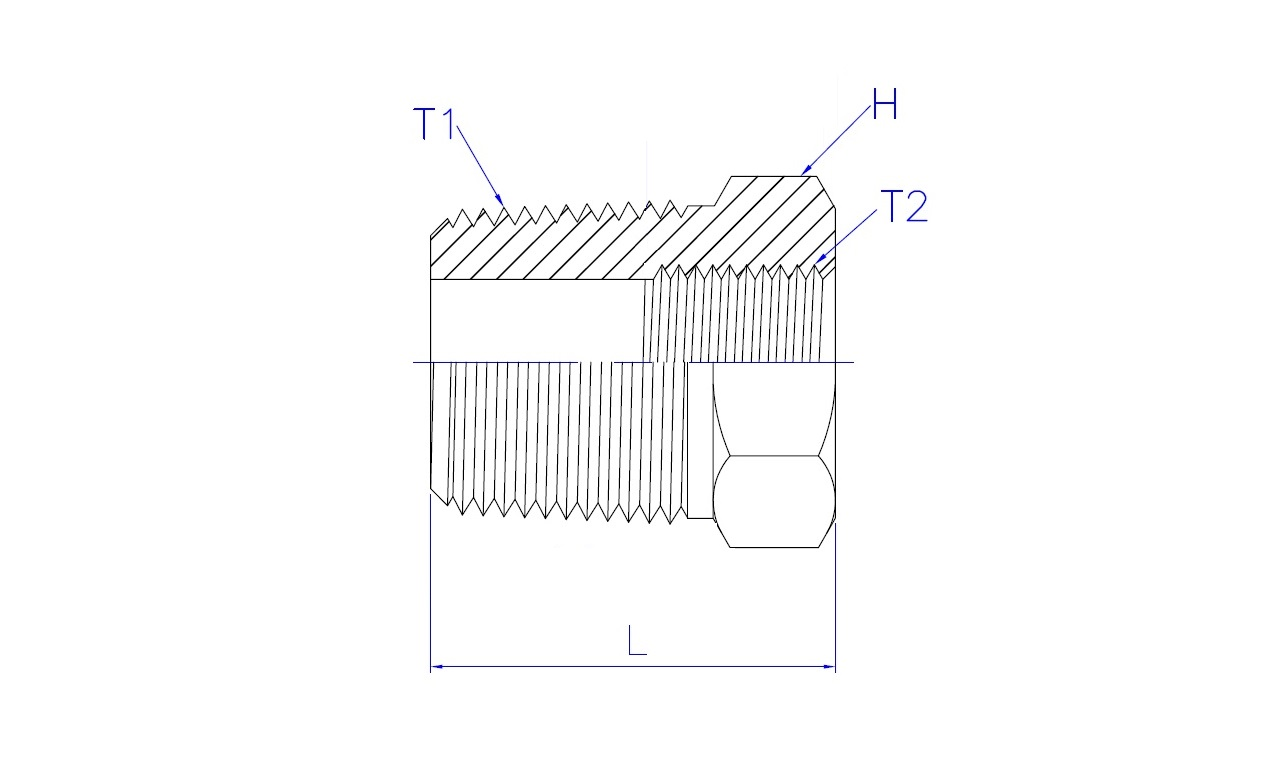

| BSPT Male to BSPP Female | ||||
|---|---|---|---|---|
| Part No. | T1 - BSPT Male | T2 - BSPP Female | L (Length) | HEX (Width) |
| RG02M04F | 1 / 8 – 28 | 1 / 4 – 19 | 32.6 | 19 |
| RG04M02F | 1 / 4 – 19 | 1 / 8 – 28 | 32.3 | 19 |
| RG04M04F | 1 / 4 – 19 | 1 / 4 – 19 | 33 | 19 |
| RG04M06F | 1 / 4 – 19 | 3 / 8 – 19 | 38 | 24 |
| RG06M04F | 3 / 8 – 19 | 1 / 4 – 19 | 22 | 17.5 |
| RG06M06F | 3 / 8 – 19 | 3 / 8 – 19 | 38.6 | 22 |
| RG08M08F | 1 / 2 – 14 | 1 / 2 – 14 | 50.1 | 27 |
| RG12M04F | 3 / 4 – 14 | 1 / 4 – 19 | 31.8 | 27 |
| RG12M06F | 3 / 4 – 14 | 3 / 8 – 19 | 31.8 | 27 |
| RG12M08F | 3 / 4 – 14 | 1 / 2 – 14 | 28.8 | 27 |
| RG12M12F | 3 / 4 – 14 | 3 / 4 – 14 | 55.1 | 32 |
| RG16M08F | 1 – 11 | 1 / 2 – 14 | 39.8 | 35 |
| RG16M12F | 1 – 11 | 3 / 4 – 14 | 39.8 | 35 |
| RG16M16F | 1 – 11 | 1 – 11 | 64.3 | 41 |
| RG20M16F | 1-1/4 – 11 | 1 – 11 | 38 | 44.5 |
*Spec, Hex & Length are able to be customized.
*Short Bushing is able to be customized.
| Male to Female | ||||
|---|---|---|---|---|
| 1 - T1 | 2 - T2 | 3+4+M | 6+7+F | 9+10 |
| Male Thread | Female Thread | T1 Dash Size | T2 Dash Size | Material |
| R-BSPT | G-BSPP | 02 to 20 | 02 to 20 | SS-Stainless Steel |
| BR-Brass | ||||
| BN-Brass (Nickel Plated) | ||||
| ST-Carbon Steel | ||||
| SZ-Carbon Steel (Zinc Plated) | ||||
| SN-Carbon Steel (Nickel Plated) | ||||
| TI-Titanium | ||||
Example
BSPP Male to Female Extented Stainless - GG04M04FSS
JIC Male to NPT Female Carbon Steel - JN02M04FST
| BSPP | ||||
|---|---|---|---|---|
| Dash Size | Inch Size | Nominal Thread Size | Male Thread O.D. | Female Thread I.D. |
| -2 | 1/8" | 1 ⁄ 8 – 28 | 3/8 (0.38") | 11/32 (0.35") |
| -4 | 1/4" | 1 ⁄ 4 – 19 | 33/64 (0.52") | 15/32 (0.47") |
| -6 | 3/8" | 3 ⁄ 8 – 19 | 21/32 (0.65") | 19/32 (0.60") |
| -8 | 1/2" | 1 ⁄ 2 – 14 | 13/16 (0.82") | 3/4 (0.75") |
| -10 | 5/8" | 5 ⁄ 8 – 14 | 7/8 (0.88") | 13/16 (0.80") |
| -12 | 3/4" | 3 ⁄ 4 – 14 | 1-1/32 (1.04") | 31/32 (0.97") |
| -16 | 1" | 1 – 11 | 1-5/16 (1.30") | 1-7/32 (1.22") |
| -20 | 1-1/4" | 1-1/4 – 11 | 1-21/32 (1.65") | 1-9/16 (1.56") |
| BSPT | ||||
|---|---|---|---|---|
| Dash Size | Inch Size | Nominal Thread Size | Male Thread O.D. | Female Thread I.D. |
| -2 | 1/8" | 1 ⁄ 8 – 28 | 3/8 (0.38") | 11/32 (0.35") |
| -4 | 1/4" | 1 ⁄ 4 – 19 | 33/64 (0.52") | 15/32 (0.47") |
| -6 | 3/8" | 3 ⁄ 8 – 19 | 21/32 (0.65") | 19/32 (0.60") |
| -8 | 1/2" | 1 ⁄ 2 – 14 | 13/16 (0.82") | 3/4 (0.75") |
| -10 | 5/8" | 5 ⁄ 8 – 14 | 7/8 (0.88") | 13/16 (0.80") |
| -12 | 3/4" | 3 ⁄ 4 – 14 | 1-1/32 (1.04") | 31/32 (0.97") |
| -16 | 1" | 1 – 11 | 1-5/16 (1.30") | 1-7/32 (1.22") |
| -20 | 1-1/4" | 1-1/4 – 11 | 1-21/32 (1.65") | 1-9/16 (1.56") |
