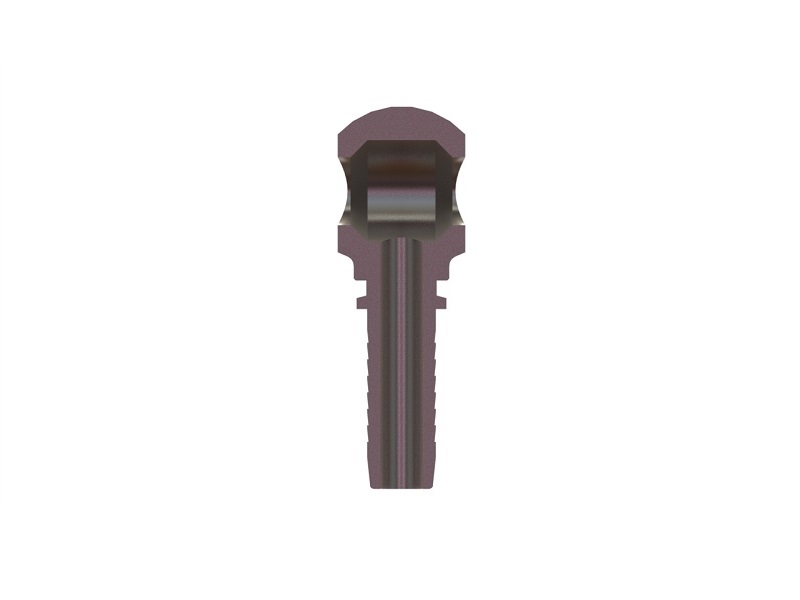

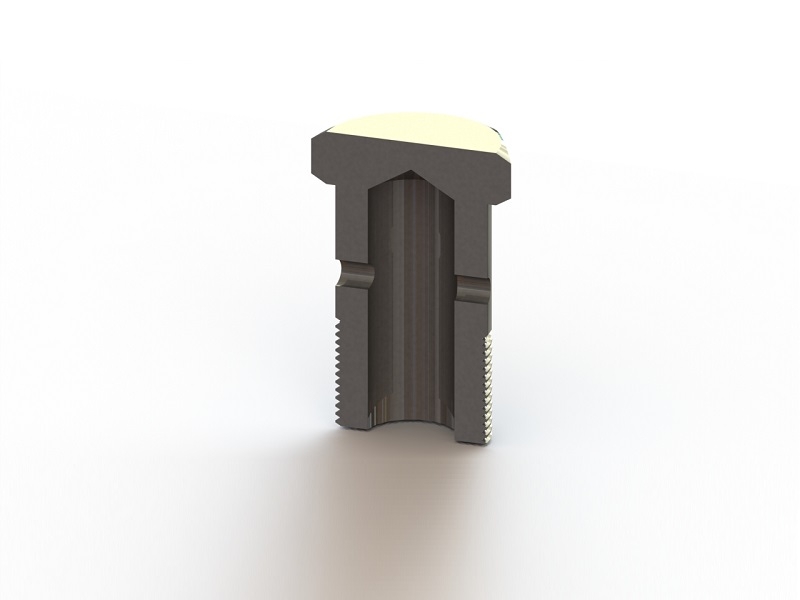

Metric Banjo to Barb & Banjo Bolt
Introduction
Material
Stainless Steel / Brass / Carbon Steel / Titanium
Finish Treatment
Nickel Plated / Zinc Plated
Description

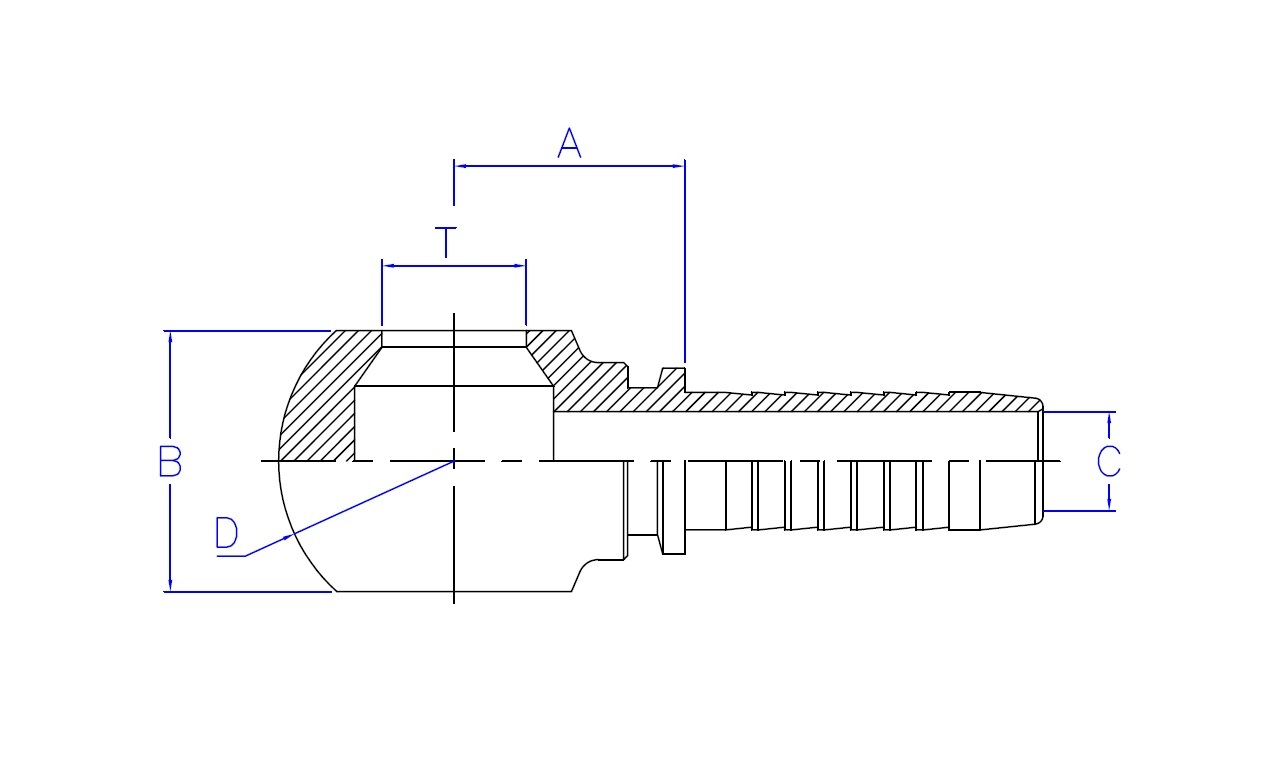

| Metric Banjo to Barb Specsheet | |||||||
|---|---|---|---|---|---|---|---|
| Part No. | Metric Banjo Bolt Size T |
Applied Hose I.D. | Dim A | Dim B | Dim C | Dim D | |
| Thread Size | Dash No. | Inches | mm | mm | mm | mm | |
| MBJBARB1204 | M12 X 1.5 | -4 | 1 / 4 | 21.0 | 12.0 | 4.1 | 20.0 |
| MBJBARB1404 | M14 X 1.5 | -4 | 1 / 4 | 21.5 | 14.0 | 4.1 | 24.0 |
| MBJBARB1406 | M14 X 1.5 | -6 | 3 / 8 | 24.1 | 14.0 | 7.1 | 24.0 |
| MBJBARB1606 | M16 X 1.5 | -6 | 3 / 8 | 24.1 | 16.0 | 7.1 | 28.0 |
| MBJBARB1806 | M18 X 1.5 | -6 | 3 / 8 | 27.1 | 18.0 | 7.1 | 32.0 |
| MBJBARB1808 | M18 X 1.5 | -8 | 1 / 2 | 27.5 | 18.0 | 9.6 | 32.0 |
| MBJBARB2208 | M22 X 1.5 | -8 | 1 / 2 | 27.5 | 22.0 | 9.6 | 35.0 |
| MBJBARB2210 | M22 X 1.5 | -10 | 5 / 8 | 28.2 | 22.0 | 12.1 | 38.0 |
| MBJBARB2612 | M26 X 1.5 | -12 | 3 / 4 | 36.5 | 26.0 | 15.0 | 45.0 |
*Unless otherwise specified, all dimensions in millimeter.
*Barb size could be customized.
| Metric Banjo to Barb | ||||
|---|---|---|---|---|
| 1 to 3 | 4 to 7 | 8 + 9 | 10 + 11 | 12 + 13 |
| Metric Banjo | Barbed End | Metric Banjo Bolt Dash Size | Applied Hose Dash Size | Material |
| MBJ – Metric Banjo | BARB | 02 to 20 | 02 to 20 | SS – Stainless Steel |
| BR – Brass | ||||
| BN – Brass (Nickel Plated) | ||||
| ST – Carbon Steel | ||||
| SZ – Carbon Steel (Zinc Plated) | ||||
| SN – Carbon Steel (Nickel Plated) | ||||
| TI – Titanium | ||||
Example
1 / 4" BSPP Male to 3 / 8" Hose Barb - GBARB0406
7 / 16" JIC Male to 1 / 4" Hose Barb - JBARB0404
| Metric | |||
|---|---|---|---|
| Thread Callout | Thread Pitch (mm) | Male Thread O.D. (mm) | Female Thread I.D. (mm) |
| M8 X 1.0 | 1.0 | 8 | 6.9 |
| M10 X 1.0 | 1.0 | 10 | 8.9 |
| M10 X 1.5 | 1.5 | 10 | 8.4 |
| M12 X 1.0 | 1 | 12 | 10.9 |
| M12 X 1.5 | 1.5 | 12 | 10.4 |
| M14 X 1.5 | 1.5 | 14 | 12.4 |
| M16 X 1.5 | 1.5 | 16 | 14.4 |
| M18 X 1.5 | 1.5 | 18 | 16.4 |
| M20 X 1.5 | 1.5 | 20 | 18.4 |
| M22 X 1.5 | 1.5 | 22 | 20.4 |
| M24 X 1.5 | 1.5 | 24 | 22.4 |
| M26 X 1.5 | 1.5 | 26 | 24.4 |
| M27 X 2.0 | 2.0 | 27 | 24.8 |
| M30 X 2.0 | 2.0 | 30 | 27.8 |
| M33 X 2.0 | 2.0 | 33 | 30.8 |
| M36 X 2.0 | 2.0 | 36 | 33.8 |
| Dash No. | Hose I.D. | |||
|---|---|---|---|---|
| All Except Transportation & Refrigerant Hoses | Transportation & Refrigerant Hoses | |||
| Inches | Millimeters | Inches | Millimeters | |
| -2 | 1 / 8 | 3.2 | -- | -- |
| -3 | 3 / 16 | 4.8 | -- | -- |
| -4 | 1 / 4 | 6.4 | 3 / 16 | 4.8 |
| -5 | 5 / 16 | 7.9 | 1 / 4 | 6.4 |
| -6 | 3 / 8 | 9.5 | 5 / 16 | 7.9 |
| -8 | 1 / 2 | 12.7 | 13 / 32 | 10.3 |
| -10 | 5 / 8 | 15.9 | 1 / 2 | 12.7 |
| -12 | 3 / 4 | 19 | 5 / 8 | 15.9 |
| -14 | 7 / 8 | 22.2 | -- | -- |
| -16 | 1 | 25.4 | 7 / 8 | 22.2 |
| -20 | 1-1/4 | 31.8 | 1-1/8 | 28.6 |
