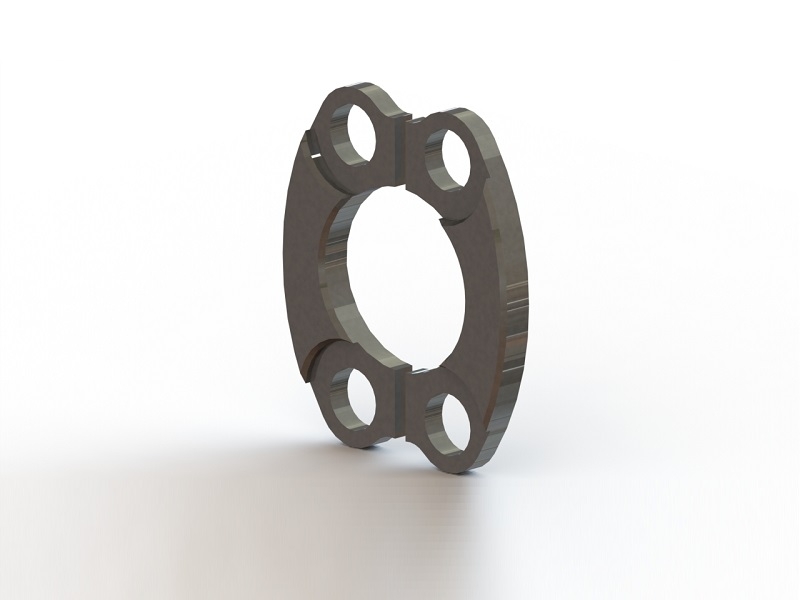

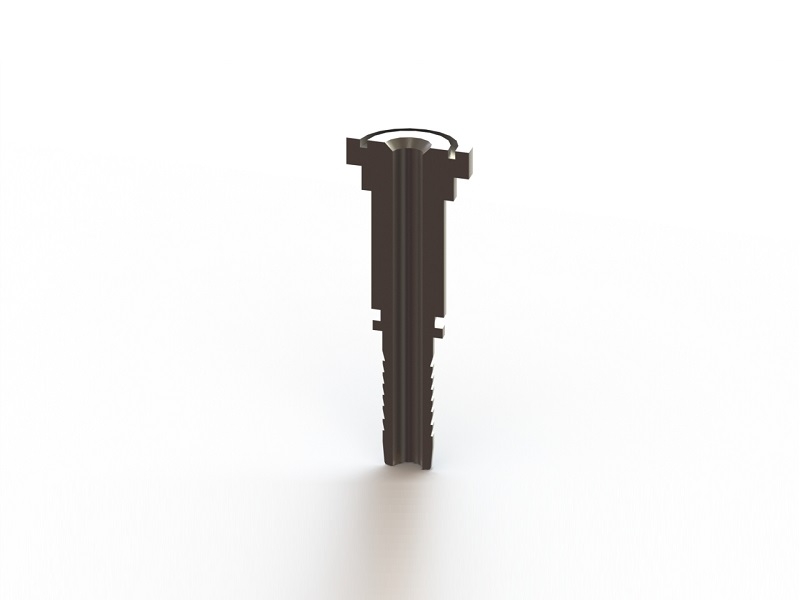

SAE Code 61 Flange to Barb & Flange Clamp
Introduction
Material
Stainless Steel / Brass / Carbon Steel / Titanium
Finish Treatment
Nickel Plated / Zinc Plated
Description

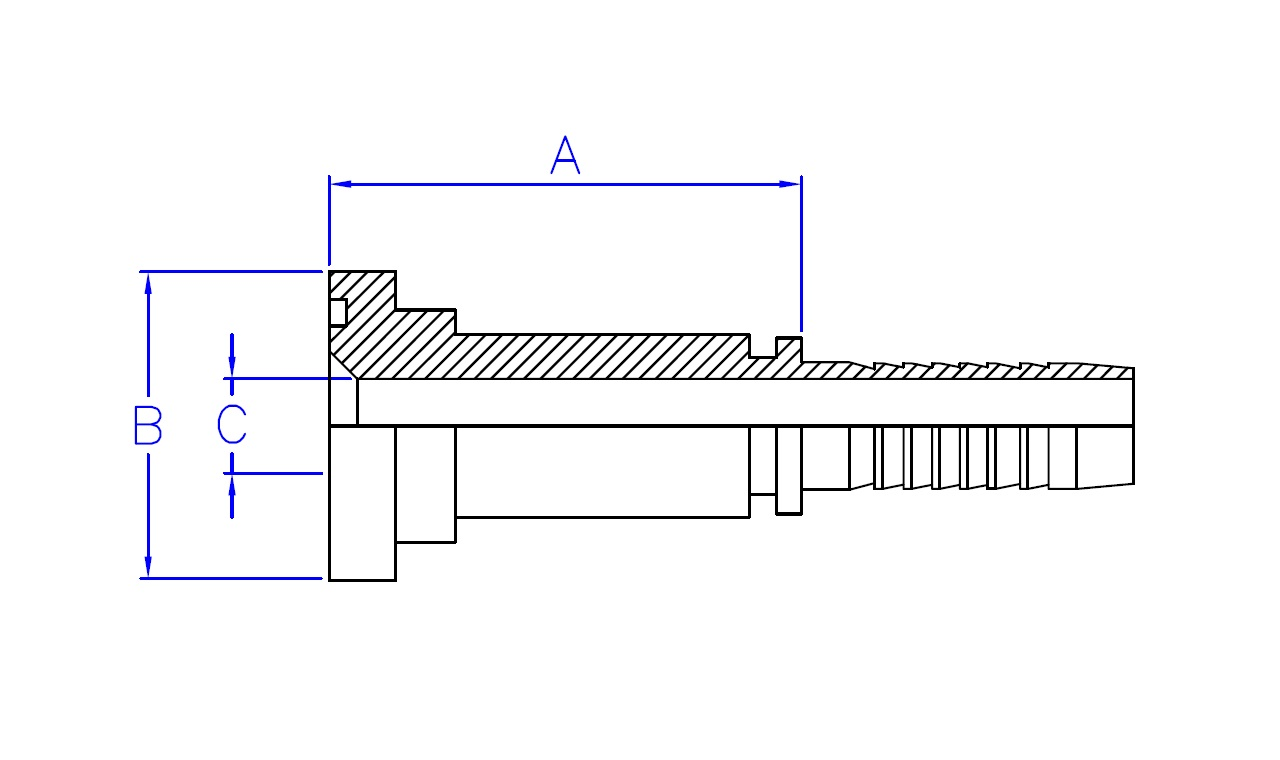

| SAE Code 61 Flange to Barb Specsheet | |||||||
|---|---|---|---|---|---|---|---|
| Part No. | Nominal Flange Size | Applied Hose I.D. | Dim A | Dim B | Dim C | ||
| Dash Size | Inches | Dash Size | Inches | mm | mm | mm | |
| F61BARB0808 | -8 | 1 / 2 | -8 | 1 / 2 | 50.0 | 30.1 | 9.5 |
| F61BARB1208 | -12 | 3 / 4 | -8 | 1 / 2 | 50.0 | 38.1 | 9.5 |
| F61BARB1210 | -12 | 3 / 4 | -10 | 5 / 8 | 50.0 | 38.1 | 12.5 |
| F61BARB1212 | -12 | 3 / 4 | -12 | 3 / 4 | 50.0 | 38.1 | 15.0 |
| F61BARB1612 | -16 | 1 | -12 | 3 / 4 | 50.0 | 44.5 | 15.0 |
| F61BARB1616 | -16 | 1 | -16 | 1 | 55.0 | 44.5 | 19.8 |
| F61BARB2016 | -20 | 1-1/4 | -16 | 1 | 57.0 | 50.8 | 19.8 |
| F61BARB2020 | -20 | 1-1/4 | -20 | 1-1/4 | 64.0 | 50.8 | 26.0 |
*Unless otherwise specified, all dimensions in millimeter.
*Barb size could be customized.
| SAE Code 61 Flange to Barb | ||||
|---|---|---|---|---|
| 1 to 3 | 4 to 7 | 8–9 | 10–11 | 12–13 |
| SAE Code 61 Flange | Barbed End | Nominal Flange Dash Size | Applied Hose Dash Size | Material |
| F61-SAE Code 61 Flange | BARB | 08 to 20 | 02 to 20 | SS-Stainless Steel |
| BR-Brass | ||||
| BN-Brass (Nickel Plated) | ||||
| ST-Carbon Steel | ||||
| SZ-Carbon Steel (Zinc Plated) | ||||
| SN-Carbon Steel (Nickel Plated) | ||||
| TI-Titanium | ||||
Example
1 / 4" BSPP Male to 3 / 8" Hose Barb - GBARB0406
7 / 16" JIC Male to 1 / 4" Hose Barb - JBARB0404
| SAE J518 | |||||
|---|---|---|---|---|---|
| Dash Size | Inch Size | Code 61 Bolt Hole Spacing | Code 61 Flange Head Diameter | Code 62 Bolt Hole Spacing | Code 62 Flange Head Diameter |
| -8 | 1/2" | 1-1/2 (1.50") | 1-3/16 (1.19") | 1-19/32 (1.59") | 1-1/4 (1.25") |
| -12 | 3/4" | 1-7/8 (1.88") | 1-1/2 (1.50") | 2 (2.00") | 1-5/8 (1.63") |
| -16 | 1" | 2-1/16 (2.06") | 1-3/4 (1.75") | 2-1/4 (2.25") | 1-7/8 (1.88") |
| -20 | 1-1/4" | 2-5/16 (2.31") | 2 (2.00") | 2-5/8 (2.63") | 2-1/8 (2.13") |
| Dash No. | Hose I.D. | |||
|---|---|---|---|---|
| All Except Transportation & Refrigerant Hoses | Transportation & Refrigerant Hoses | |||
| Inches | Millimeters | Inches | Millimeters | |
| -2 | 1 / 8 | 3.2 | -- | -- |
| -3 | 3 / 16 | 4.8 | -- | -- |
| -4 | 1 / 4 | 6.4 | 3 / 16 | 4.8 |
| -5 | 5 / 16 | 7.9 | 1 / 4 | 6.4 |
| -6 | 3 / 8 | 9.5 | 5 / 16 | 7.9 |
| -8 | 1 / 2 | 12.7 | 13 / 32 | 10.3 |
| -10 | 5 / 8 | 15.9 | 1 / 2 | 12.7 |
| -12 | 3 / 4 | 19 | 5 / 8 | 15.9 |
| -14 | 7 / 8 | 22.2 | -- | -- |
| -16 | 1 | 25.4 | 7 / 8 | 22.2 |
| -20 | 1-1/4 | 31.8 | 1-1/8 | 28.6 |
